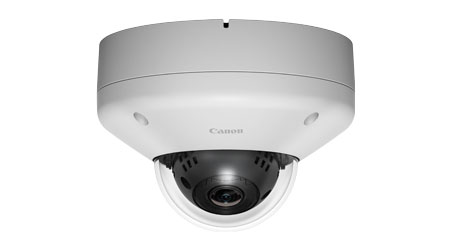

Canon VB-M641VE

VB-M641VE

Keep every outdoor angle covered

VB-M641VE

Преимущества

    • High quality images day or night with 1.3 MP resolution
    • Superb low light performance and ultra wide coverage
    • Outdoor-ready with vandal and environmental protection
    • Extreme low start up temperature and operation
    • Easy installation plus enhanced intelligent detection

Подробное описание

Получите более подробную информацию о Canon VB-M641VE

High quality images day or night with 1.3 MP resolution


Protect your site with high quality, detailed images day and night thanks to a 1.3 MP high sensitivity CMOS sensor and true Day and Night switching. Optimised H.264 bit rate and ADSR technology improve bandwidth control and allow operators to freely define areas of the scene where the best quality imaging is needed.

Superb low light performance and ultra wide coverage


The wide aperture f/1.2-1.8 Super-UD lens with 2.4 x optical zoom delivers bright clear images even in low light environments, while the ultra wide 111.5° horizontal angle of view is ideal for monitoring wider areas. The IR Corrected lens not only provides clean sharp images day or night but it also improves low light performance. Minimum subject illumination is 0.02 lux (colour) to 0.001lux (mono). Image enhancing Haze Compensation automatically adjusts the image contrast to bring hazy scenes in to clear view.

Easy installation plus enhanced intelligent detection


The VB-M641VE features a simple pigtail cable connection and PTRZ remote set up, for easy configuration and modification of camera angles from a PC, to help reduce installation times and cost. Connections include Audio and Alarm inputs and operators can easily identify alarming situations thanks to a range of inbuilt intelligent detection functions, which can automatically activate recording. These include Intruder Detection, which identifies moving objects entering a specified area, and Scream Detection, which recognises abnormal human sounds like screams or yells.

Outdoor-ready with vandal and environmental protection


The VB-M641VE is fully outdoor ready and vandal resistant. It offers IK10 shock resistance certification as well as IP66 certification for extensive weatherproofing and environmental protection. Its robust construction and innovative design is also compliant with NEMA250 Type4X and IEC 60950-1/22 standards, m

Технические характеристики продукта

Узнайте больше об устройстве Canon VB-M641VE, его функциях и возможностях.

DIGIC NET II

Эффективная работа в сети

Digic DV III

Высокое качество изображения и удобное управление

1.3 Mega Pixel

Высококачественные изображения

IK10

Сертифицированная вандалозащищенность

All weather Model

Улучшенная защита от погодных факторов

Auto DayNight

Съемный ИК-фильтр

Intelligent Function

Анализ видеоматериалов

Intrusion Detection

Защита зоны

Scream Detection

Распознавание звуков

Power over Ethernet

Питание через Ethernet

ADSR

Улучшенное управление полосой пропускания

Linked Event

Условные сигналы тревоги

SD Card

Локальная запись (Edge recording)

CCMT

Управление несколькими камерами

  • Основное устройство VB-M641VE
  • Установочный компакт-диск
  • Монтажная плата для установки камеры на потолок
  • Фиксирующий винт
  • Страховочный тросик и фиксирующий винт
  • Ключ
  • Шаблон
  • Интерфейсный кабель питания
  • Интерфейсный кабель ввода/вывода
  • Руководство по установке
  • Гарантийный талон
  • Бланк гарантийного талона
  • Упаковка
