VB-M640V

Keep every angle covered

VB-M640V

Преимущества

    • High quality images day or night with 1.3 MP resolution
    • Superb low light performance and ultra wide coverage
    • Quick and easy installation with remote PTRZ set up
    • Additional Intelligent Intruder detection
    • Enhanced bandwidth management and bit rate control

Подробное описание

Получите более подробную информацию о Canon VB-M640V

High quality images day or night with 1.3 MP resolution

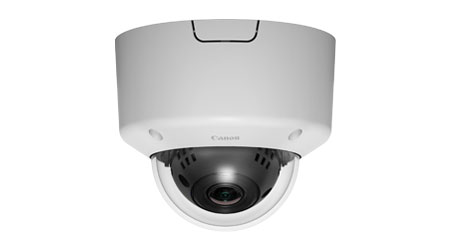

The compact VB-M640V is an IK10 vandal-resistant Fixed Dome camera that effortlessly captures everything in high quality 1.3 MP images day or night. Designed for indoor installation in a wide range of environments it features a Super-UD lens that provides maximum IR support and true Day and Night switching.

Superb low light performance and ultra wide coverage


The wide aperture f/1.2-1.8 Super-UD lens with 2.4 x optical zoom delivers bright clear images even in low light environments, while the ultra wide 111.5° horizontal angle of view is ideal for monitoring wider areas. The IR Corrected lens not only provides clean sharp images day or night but also improves low light performance. Minimum subject illumination is 0.02 lux (colour) to 0.001lux (mono). Image enhancing Haze Compensation automatically adjusts the image contrast to bring hazy scenes in to clear view.

Quick and easy installation with remote PTRZ set up


The VB-M640V offers reduced installation times and cost thanks to an improved PTRZ lens mechanism with increased shock and vibration resistance, which allows quick and easy remote set up of camera angles from a PC.

Enhanced bandwidth and bit rate control


Enjoy improved network bandwidth management and enhanced bit rate control thanks to optimised H.264 encoding and ADSR (Area-specific Data Size Reduction) technology. ASDR allows you to set the pre-configured image quality to 8 distinct areas within the field of view to lower the cameras H.264 bit rate.

Additional intelligent intruder detection


The Industry leading range of inbuilt analytics functions, which can automatically alert operators to alarming situations and activate recording, has been enhanced with the addition of Intruder detection. Intruder Detection identifies moving objects of a minimum specified size entering an out of bounds area and remaining there

Технические характеристики продукта

Узнайте больше об устройстве Canon VB-M640V, его функциях и возможностях.

DIGIC NET II

Эффективная работа в сети

Digic DV III

Высокое качество изображения и удобное управление

1.3 Mega Pixel

Высококачественные изображения

IK10

Сертифицированная вандалозащищенность

Auto DayNight

Съемный ИК-фильтр

Intelligent Function

Анализ видеоматериалов

Intrusion Detection

Защита зоны

Power over Ethernet

Питание через Ethernet

ADSR

Улучшенное управление полосой пропускания

microSD

Локальная запись (Edge recording)

CCMT

Управление несколькими камерами

  • Основное устройство VB-M640V
  • Установочный компакт-диск
  • Монтажная плата для установки камеры на потолок
  • Фиксирующие винты
  • Страховочный тросик и фиксирующий винт
  • Ключ
  • Шаблон
  • Источник питания
  • Интерфейсный аудиокабель
  • Руководство по установке
  • Гарантийный талон
  • Бланк гарантийного талона
  • Упаковка
